Description

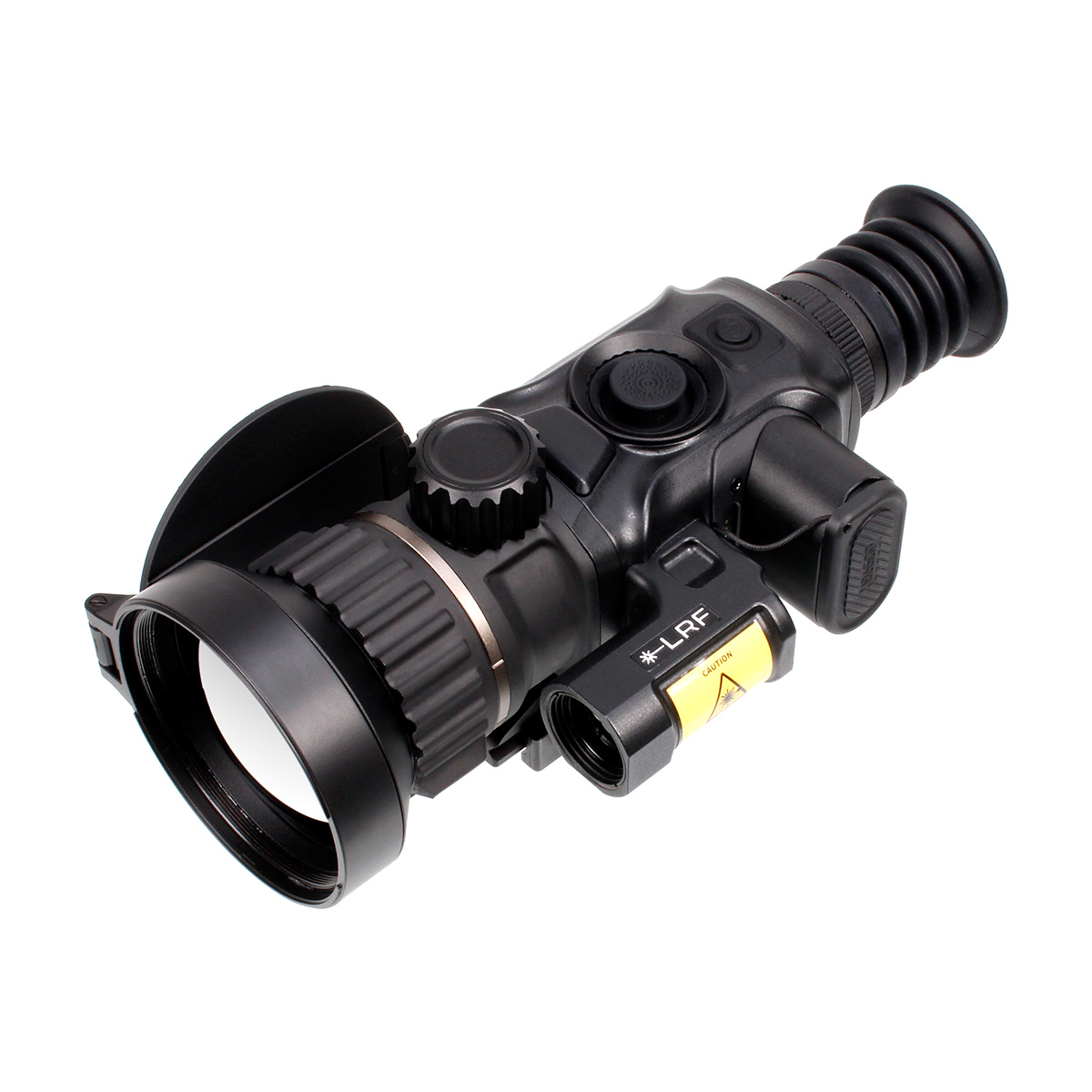

The Tempest 660D takes everything great about the 650 and pushes it further with a dual-lens system that functions like two scopes in one. Its 20mm lens offers an ultra-wide field of view ideal for close-range awareness, while the 60mm lens provides sharp 3.4X magnification paired with a laser rangefinder and auto ballistics for long-range precision. Designed to transform your night hunting experience, the 660D includes everything you need and is backed by a 5-Year Transferable Warranty.
Sensor Pixel Size / Frame Rate: 12 Micron / 50 Hz
Objective Lens Diameter: 60 mm (Dual Lens 60mm/20mm)
NETD: <15mK
Field-of-View: 1170′ at 1000 Yards (1x) and 380′ at 1000 Yards (3.4x)
Base Level Magnification: 3.4x (Before Any Digital Zoom at 60mm)
Digital Magnification: 3.4x to 13.6x with 2 Options (Rapid and Smooth)
Display Type/Resolution: HD AMOLED / 1024 x 768
Display OLED Adjustment: Yes with 4 Hue Options (Grey, Blue, Purple, Red)
Color Palette Modes: 6 (White, Black, Red, Green, Golden, Violet)
Picture-in-Picture (PIP): Yes
Recoil Activated Recording: Yes with Sensitivity Threshold Adjustment
Hot Tracking: Yes
Outline Mode: Yes
Reticle Design Options: 8 (Plus a “No Reticle” 9th Option)
Reticle Color Options: 5 (Black, White, Red, Green, and Blue)
Reticle Polarity Reversal: Yes (Optional On/Off)
Reticle Illuminated Dot: Yes, 4 Designs Feature Center Dot Illumination
Reticle Center Dot: 3 Illumination Options (Red, Blue, Green)
Reticle Focal Plane Options: Yes (Front Focal or Second Focal)
Laser Class: Class 3R
Laser Ranging Distance: 1300 Yards (Max Expected for Reflective Target)
Ballistic Calculation: Yes (Automatic Drop Compensation to 600 Yards)
Multiple Gun Profiles: Yes (Save up to 5 Different Zeros)
Gun Profile Nicknaming: Yes (Caliber Labeling and Zero Distance)
Detection Range: Up to 2900 Yards
Start-Up Time (Cold Start): 3 Seconds (Logo Appearance to Functional Use)
Auto Shutdown Battery Saver: Yes with 4 Options (Off, 30, 60, and 90 Minutes)
Media Recording: Yes (Photo, Video, and Audio with On or Off)
Media File Management: Yes (On-Board Viewing and File Deletion)
WIFI and Hot-Spot Equipped: Yes
Battery Type Options: (2x) 18650 (Not Polarity Sensitive)
Expected Battery Life: 13+ Hours (w/3500 mAh Battery & WIFI Off @ 78F)
Recoil Rating: 6,000 J (300 Win Mag Suggested Max)
Nitrogen Purged: Yes
Scope Length: 9″
Weight: 36 oz. (Without Batteries)
Waterproof Rating: IP67
UPG (Ultra-Pure Germanium) Objective Lens
Exceptional lens for maximum thermal energy transfer. Achieve 100% sensor capacity utilization.
G6 (Sixth Generation) 12-Micron Thermal Sensor
True sub-18mk NETD for incredible performance in high humidity and fog
Military-Style Joystick Control
No fumbling through buttons, easy-use joystick for simplified “in-the-dark” operation.
Easy Zeroing Process
Super simple zeroing process with freeze function; everything is accomplished from one screen.
Compact Design
The extremely compact design makes for a lighter and smaller device.
Large Top Knob Focus
Superior design for faster and more precise target focusing, even with heavy gloves.
Integrated Laser Range Finder
Powerful and precise laser for quick and easy determination of target distances
Advanced Smooth Zoom
Smooth zoom offers precise zoom control and a more traditional scope experience.
Two Laser Operating Modes
Scan mode for continuous distance measurement. Ballistic Mode with single pulse and auto ballistics
Automatic Ballistic Compensation
Onboard ballistic calculations for accurate long-range shot placement
Gun Profile Nicknaming
Add gun name and zero distance to each gun profile for easy recall.
Industry-Leading Reticle Management
Nine reticle options, 1st or 2nd focal function, polarity reversal, and illuminated center dot.
Ambidextrous Design
The intuitive joystick design allows for either-hand operation.
Rugged Mil-Spec Aluminum Construction
Ruggedized housing for maximum durability and heat dissipation away from the sensor.
Uses Commonly Available Rechargeable Batteries
Uses two 18650 protected-style batteries. We include four and a high-quality charging cradle.
Exceptionally Long Run Times
Expect 13+ hours of run time between recharging.
Free Phone App (Android and iOS)
Exceptional live streaming, image management, ballistic data uploads, and firmware updates
Onboard Media File Management
View and manage video and photo files directly from the device.
Premium QD Scope Mount
Quick disconnect with perfect return to zero, easily adjusts for variations in rail size.
